Alcemus offerd Detailed Design and Engineering is a development of all required construction documents and drawings up to Approved for Constructionstage for the construction, and detailed bill of materials (BOM) for the bulk material procurement based on the basic engineering or front end engineering design (FEED) package. The Detailed Design and Engineering is limited to the verification of the design basis but producing all construction drawings after incorporating vendor information. We provide following detail engineering services

Piping Design:

• Overall Plot Plan
• Process Area Plot Plans
• Piping General Arrangement Drawings
• Key Plan

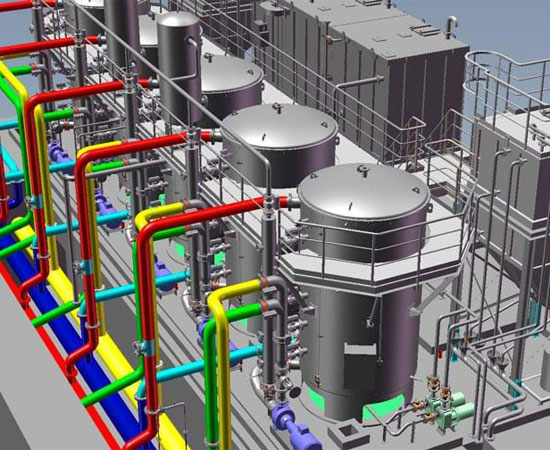

• 3D Modeling
• Piping Layouts
• Piping isometrics
• Piping supports
• Material Take off
• Bill of Material
• Stress Analysis studies
• Vendor Documents Review
